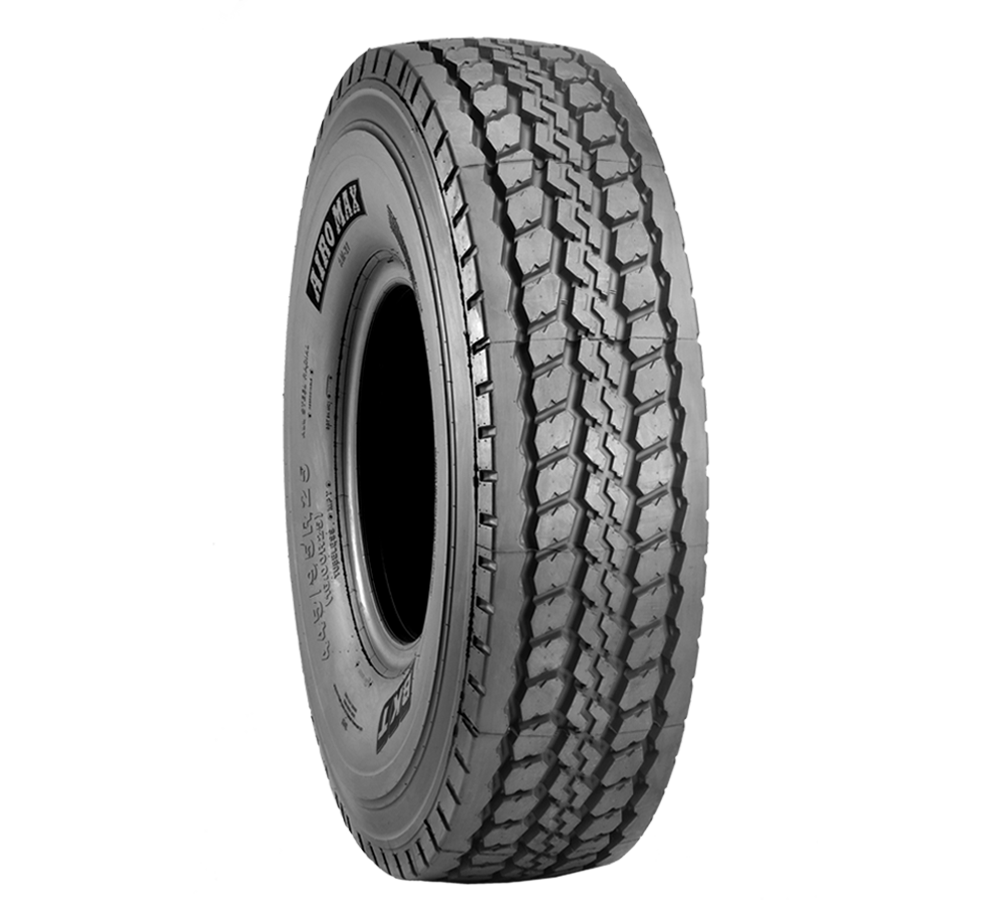

445/95R25 BKT AIROMAX AM 27 174F TL

Description

AIROMAX AM 27 are a range of all-steel radial road-oriented tyres that have been developed for use on mobile crane machines working in construction applications. AM 27 have been designed with high load-bearing and high-speed capabilities (up to 80 km/h across certain sizes) making them suitable for modern high-speed cranes. Special compounds have been used in construction in order to combat heat build-up when used in road-going applications and the tread pattern has been designed in order to achieve a high level of handling and operator comfort.

Features

  • Range of high-speed tyres suitable for mobile-crane application.
  • Special rubber compound to counter heat build-up in operation.
  • High load-bearing and high-speed capability.

Specification

Application
EARTHMOVER
Size
445/95R25
Equivalent Size 1
16.00R25
Brand
BKT
Pattern
AIROMAX AM 27
Load/Speed Index
174F
TT/TL
TL
Construction
RADIAL
Nominal Section Width
445
Profile
95
Rim
25
Recommended Rim
11.25/2.0
Permitted Rim
11.00/1.7 CR 11.00/1.7CRL
Section Width
440 mm
Overall Diameter
1490 mm
Static Load Radius
695 mm
Rolling Circumference
4587 mm
Tread Depth
23.50 mm
Max Load (KG)/Speed (KM/H) 1
6700/80
Inflation Pressure Bar
9.00
M&S
Yes
ECE 54
Yes
Warranty
8 YEARS
